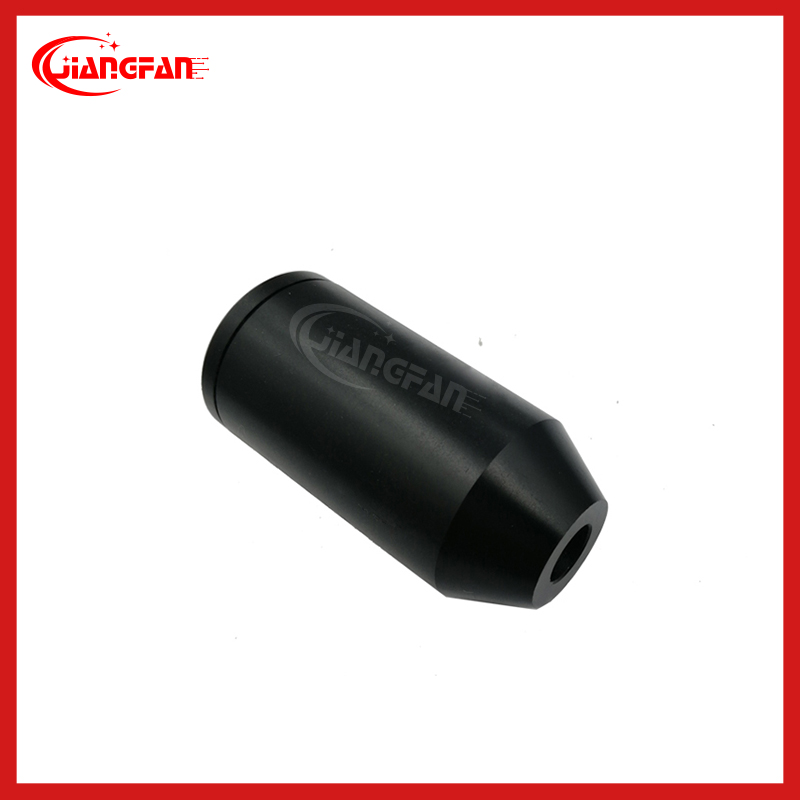

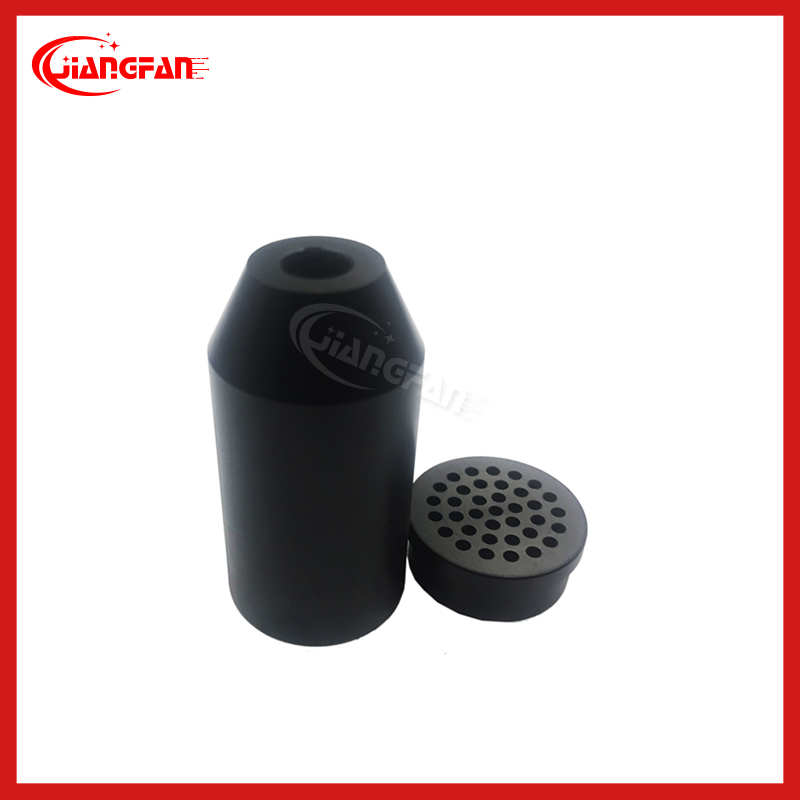

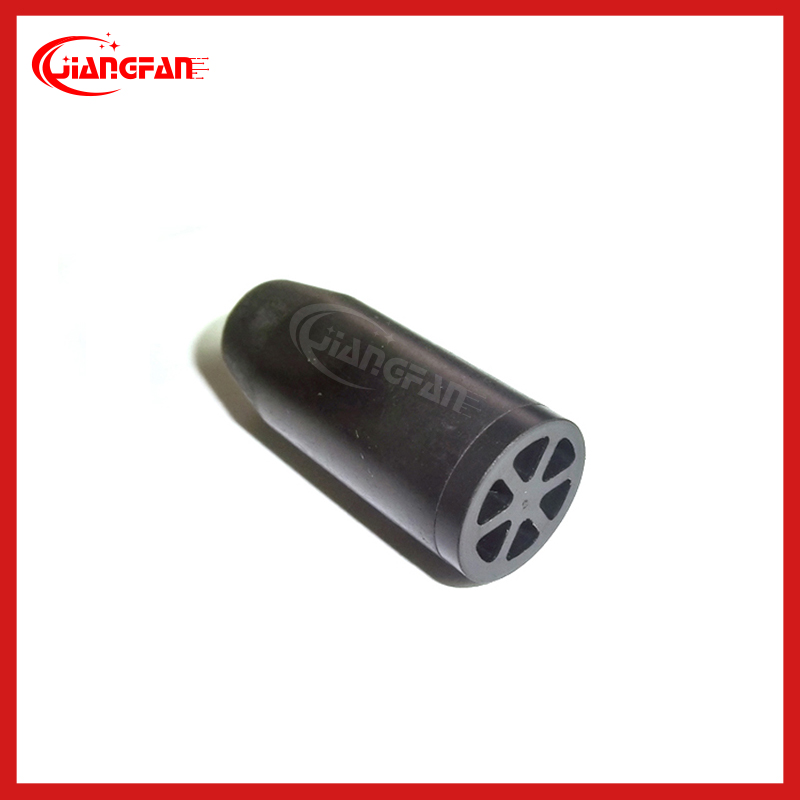

FZQ-04 optical fiber fan out kit -36core
36 Core2.0 Cable Dia 3-12mm FZQ-04 High Temperature Resistant To ROHS Spary Molding Bundle Fan Out Kit
Description:
The bare fiber of multi-core optical cable is easy to break off. This product can fix branch and cable protection pipe to make the optical fiber data more stable, secure and beautiful.The fixing methods of products generally include metal ring fixation, glue fixation, extrusion deformation and so on.
Optical fiber protection tube is to protect the 125 mu m bare fiber optic fiber is not easy damaged, worn outside casing protection strengthen (usually use 0.9 mm to 2.0 mm to 3.0 mm or other metal specifications) port we called the branch end fixed station (customer called the output or input)
The kits provide the most compact, easy-to-install fan-out solution requiring no additional hardware or space than that required for terminating tight-buffered cables. Indoor kits feature a 900 um fan-out assembly that is color coded to match the fiber color scheme. The fan-out assembly is available with 6- or 12-fiber units in lengths of 0.6 m (25 in) or 1.2 m (47 in). These different lengths provide the installer the flexibility needed for a variety of hardware options.
| Features: | Application: |
| Material non-metal black | Bunch cable branch |
| POM material | Armored fiber optic cable branch |
| High temperature resistant to ROHS | Field optical cable branch |
| Fast and easy fixing | Various optical/cable branch solutions |
FZQ-04 product ordering information:
| Core No. OD2 | Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths | material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
Product list
application scenarios
other product
certification
Packaging&shipping
packege:idividual box or according to customer's request
Port:ShenZhen
FAQ
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it is 3-6 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below: A: We are factory.
